Membrane Holder

Data Download：

Product Introduction
Alioth Membrane Holder is designed according to sanitary requirements and GMP standards. Combined with various materials and sizes of diaphragms produced by Alioth, it can be flexibly used at the diaphragm material selection stage of different processes in different industries. It is easy to clean and drain, poses no concerns about residual liquid, and can meet the relevant requirements of biopharmaceutical industry.

Depth Stacked DataSheet

넳 넲

我是段落。点击这儿添加你的文字并编辑它，非常容易。-双击进行编辑

• Sanitary design, which meets the strict regulatory requirements of pharmaceutical industry .

• Compliant with cGMP standards; effort-saving, safe and easy operation.

• Compatible with major brands of diaphragms in the market.

• Equipped with a low-point vent valve for easy removal of residual material liquid.

• Compatible with diaphragms from different brands.

• Adopt industry-standard chuck interface connection.

• Can be specially customized according to the requirements of customer.
• Liquid filtration

• Diaphragm material selection

• Process development

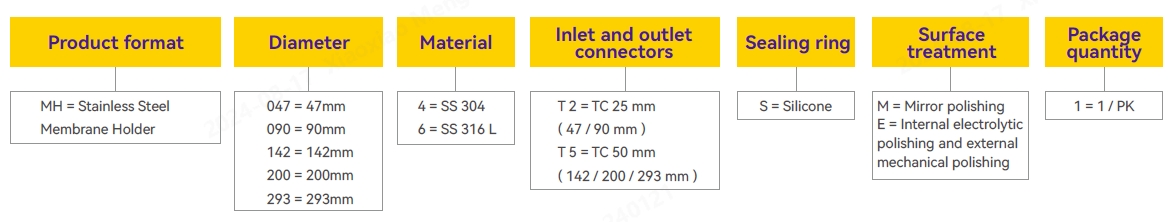

Product Specifications

Material	Stainless steel: SS 316 L, SS 304 L Gasket: Silicone
Connector type	Available in: Flange connectors 25 mm and 50 mm
Finish	Available in: Mirror polishing, internal electrolytic polishing and external mechanical polishing
Diameter	Available in: 47, 90, 142, 200, 293 mm
Maximum operating conditions	0.6 MPa
